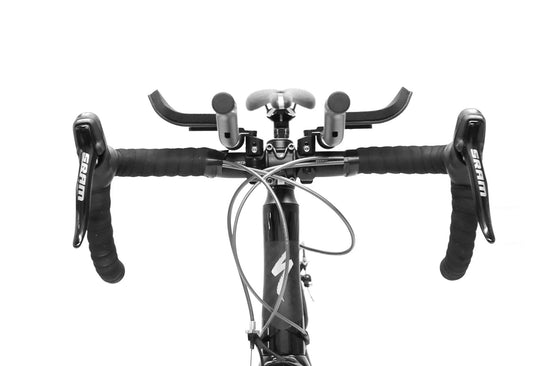

The Quick-Release Aerobars let you switch from road to aero on-the-fly on the bike you already own. The patented quick-release mechanism allows you to attach or remove the aerobars in a few seconds without any tools so you can choose the best riding position for any ride. Along with the Dual-Position Seatpost, this system provides an optimized aero riding position on your road bike.
Benefits:
• Transform your current bike - switch from road to aero position on the bike you already own
• No tools required - remove or attach the aerobars easily with the quick-release mechanism
• Ride with ease - no more time and energy wasted switching from road bike to aero bike
Details:
• Extensions are available in Aluminum and Carbon, as well as L-Bend or S-Bend
• Massive adjustability lets you fine-tune your fit - extension length, armpad fore-aft, armpad width and height (Extension Riser Kit sold separately)
• Secondary safety release mechanism prevents accidental release
What's in the Box:
• Handlebar Clamps
• Quick-Release Mechanisms
• Aerobar Extensions, Armrest, and Armrest Pads
• All required hardware
Technical Specs
| Weight |
564 g/pr Carbon S-Bend
570 g/pr Carbon L-Bend |
| Pad Height (A) |
Minimum - 70 mm
Maximum - 100 mm (with two stack spacers - sold separately as Extension Riser Kit) |
| Pad Setback (B) |
Minimum - 30 mm
Maximum - 81 mm |
| Pad Width (C) |
Minimum - 108 mm
Maximum - 165 mm |
| Extension Length (D) |
362 mm S-bend
368 mm L-bend |
| Extension Rise (E) |
50 mm S-bend
100 mm L-bend |
| Extension Diameter (F) |
22.2 mm (compatible with industry-standard extensions) |
| Handlebar Clamp Width (G) |
22 mm |
| Handlebar Diameter |
31.8 mm compatible
26.0 mm compatible (with shims - sold separately) |
